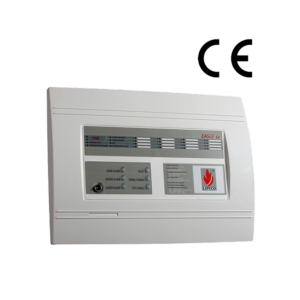

EAGLE12 is a conventional fire detection and indication panel that has 8 fixed and is expanded to 12 zones. EAGLE12 is based on a modular principle – a power unit, a control panel, zone/ sounder expanders, an indication module and battery space. A detailed LED indication shows the status of the system, divided in two groups – for technician level and for monitor and observer level. An appropriate mode for zone detector testing by a single person has been implemented – One Man Test. Control and indications can be doubled at a remote site up to 1000m away with the help of a repeater. The panel has been designed to operate with one 12 V battery back-up power, which reduces the costs by the value of one battery per system. The EAGLE12 is suitable for vast range of applications – big office buildings, schools, supermarkets and other with over 3000m2

Features:
12 Fixed Zones
Supports up to 384 detectors
Unlimited call points
1 “fire” and 1 “fault” relay outputs
4 monitored sounder outputs
Active EOL allowing continuous monitoring of inputs
Walk test
LED indication
Levels of access protected by means of security key
Plastic box
